Production introduction:
TRSS-DB9 and TRS-DB25 surge protective device are designed to protect sensitive equipment linked to datalines equipped with D-sub connectors, as RS232, RS422 and RS485lines. They are equipped with D-sub connectors for fast and easy maintenance. In order to comply with the line configuration, all the wires are transmitted and protected.
Product Feactures:
1. D-Sub surge protective device
2. For RS422 communication lines
3. 9-pin connector
4. Fast and easy installation
5. Secondary protection
|
Electrical Characteristics |
||
|
Type |
TRSS-DB9 |
TRSS-DB25 |
|
Nominal working voltage （DC）UN |
12 V |
12 V |
|
Maximum continuous working voltage（DC）Uc |
18 V |
18 V |
|
Rated current at 45℃ IL |
100 mA |
100 mA |
|
Nominal discharge current per line(C2, 8/20μs) In |
0.1 kA |
0.1 kA |
|
Line-line voltage protection level(C2, 8/20 μs) Up |
60 V |
60 V |
|
Line-PE voltage protection level(C2, 8/20 μs) Up |
600 V |
600 V |
|
Line-line voltage protection level(C3, 1kV/μs) Up |
60 V |
60 V |
|
Line-PE voltage protection level(C3, 1kV/μs) Up |
600 V |
600 V |
|
Line-line voltage protection level(B2, 1kV@10/700μs) Up |
60 V |
60 V |
|
Line-PE voltage protection level(B2, 1kV@10/700μs) Up |
600 V |
600 V |
|
Line-line response timetA |
1 ns |
1 ns |
|
Line-PE response timetA |
100 ns |
100 ns |
|
Series resistance R |
0 ohm |
0 ohm |
|
Enclosure rating |
IP20 |
|
|
Grounding method |
Lead wire |
|
|
Shell material |
ABS |
|
|
Body color |
Beige/black |
|

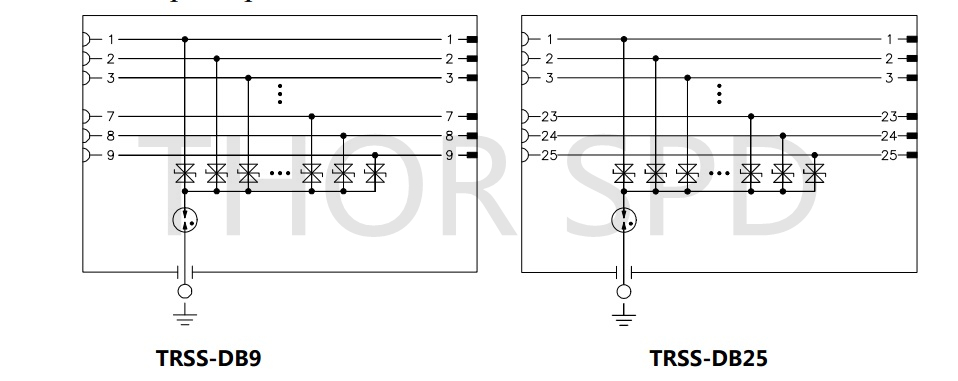

Circuit Diagram:

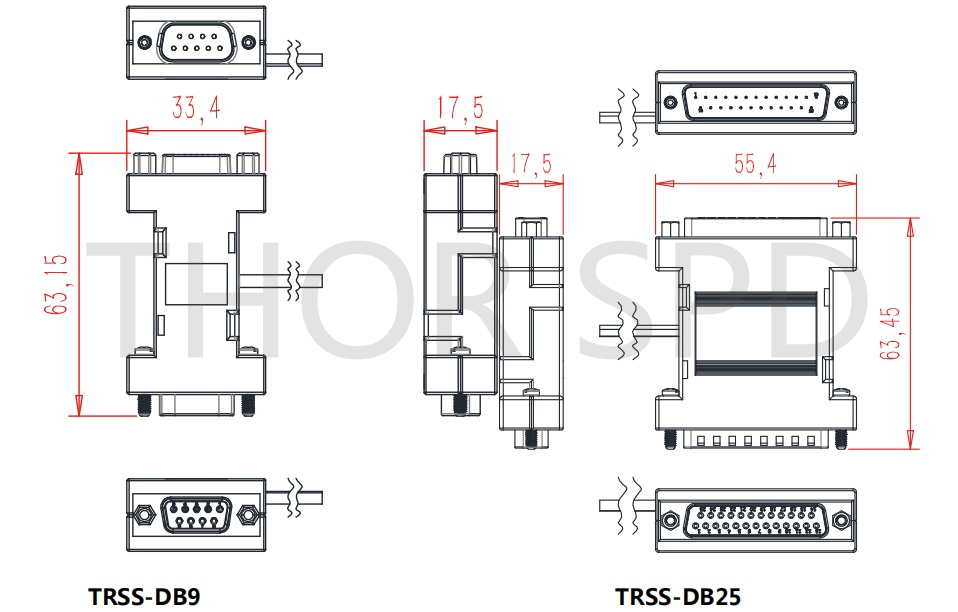

Dimension:
