Product introduction:

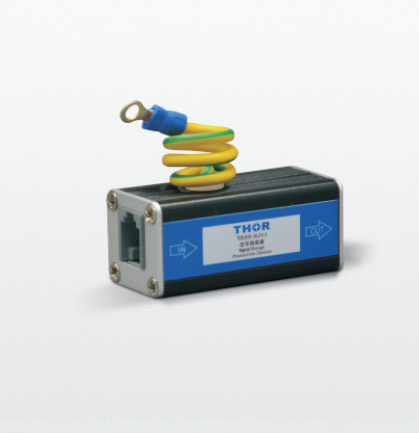

THOR-RJ11 series surge protective device (in short:SPD,alias:surge protector, surge arrester) is suitable for such as modem,DDN fax and telephone ,which protects the electric network nostshocked by the lightning or surge over voltage.
|
Electrical Characteristics |
|
|
Model and specification |
TRSS-RJ11 |
|
Max continuous operating voltage |
48v dc |
|
Voltage protective level (v) |
＜500 |
|
Nominal discharge current |
3KA |
|
Max discharge current |
5KA |
|
Adaptive data transfer Rate |
2Mbps |
|
Response time |
<1ns |
|
Working temperature |
-40℃-- +85℃ |
|
Remote signal function |
Can also picking |
|
Configuration dimension |
52*25*25mm |
