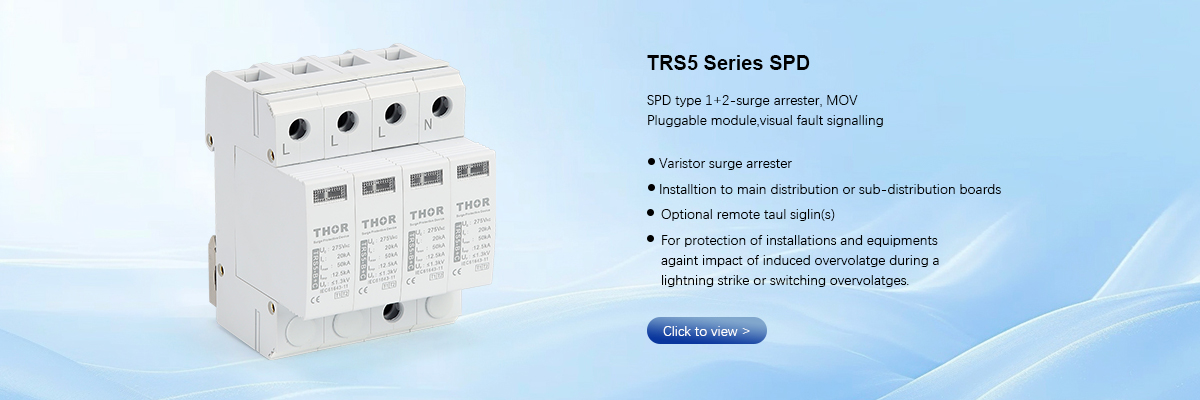

Product introduction

        TRS5 Series surge protective device(Abbreviation: SPD) belongs to Type1 and Type2 (8/20 and 10/350 waveform) lightning protection, used in AC 50/60Hz, rated voltage up to 275V IT、TT、TN-C、TN-S、 TN-C-S .and other power supply system，It protects the system from indirect and direct lightning effect or other transient over voltage.

        SPD is designed by according with GB 18802. 1/IEC61643-1 standard.

Structure and Principle

      SPD as a port, its features are anti-shocking protection, indoor -mounted installation, voltage limiting.

      SPD internal with a disconnector. When the SPD breakdown by over heating, the disconnector can remove from the power grid automatically, and show indication signal. When SPD is working normally, visible displays green, it displays red when it breakdown.

      1P+N,2P+N,3P+N SPD accordingly consist of 1P,2P,3P SPD+NPE zero ground protection module,applying to TN-S、TN-C-S and other power supply system.

Product Installation

      With 35mm standard Din-rail mounting, co nnecting copper stranded conductor is 2. 5~35mm².

      Each pole is necessary with protection-using fuse or miniature circuit breaker to protect. It helps to protect them in the short circuit when SPD brea kdown.

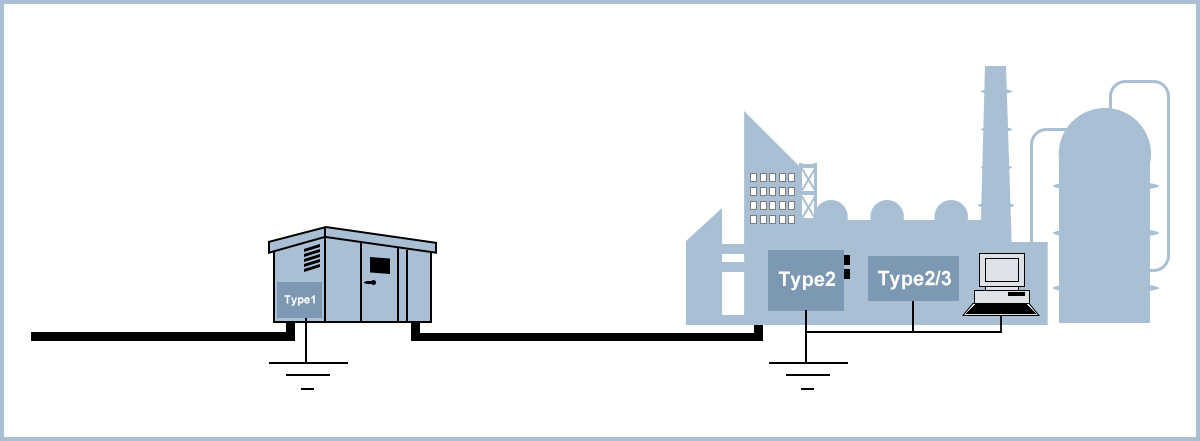

      SPD is installed in front of protected equipme nt and connected with power supply circuit. A class SPD is installed in the building home-entry line hold larger surge current total distribution box. B, C class products most install on the flo or distribution box, D class SPD is installed in front of equipment which with low surge current and in a low residualvoltage place.

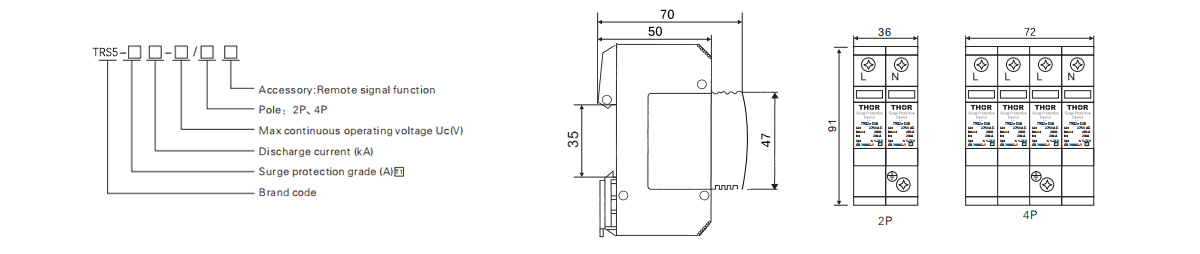

Model and meaning                                                      Dimension drawing

Please click here to view detailed technical parameters

AC Series Classification
