Type 1+ 2 DC photovoltaic surge protection device TRS3 series

Data:2021-07-31
solar spd,solar surge protector,pv spd,pv surge

Surge Protective Devices (SPDs) provide protection against electrical surges and spikes, including those caused directly and indirectly by lightning. They can be utilized as complete devices or as components within electrical equipment.

Photovoltaic (PV) system converts solar energy into direct current electricity. PV system ranges from small, rooftop-mounted or building-integrated systems with capacities from a few to several tens of kilowatts, to large utility-scale power stations of hundreds of megawatts. The potential impact of lightning events increases with PV system size. At locations with frequent lightning, unprotected PV systems will suffer repeated and significant damages. This results in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events.

Sensitive electrical equipments of PV system like AC/DC Inverter, monitoring devices and PV array must be protected by surge protective devices (SPD).

To determine the proper SPD module for the PV system and its installation, you must know:

1.the lightning round flash density;

2.the system's operating temperature;

3.the system's voltage;

4.the system's short circuit current rating;

5.the level of waveform that is to be protected against (indirect or direct lightning); and the nominal discharge current.

The SPD that is provided on the dc output must have a dc MCOV equal to or greater than the maximum photovoltaic system voltage of the panel.

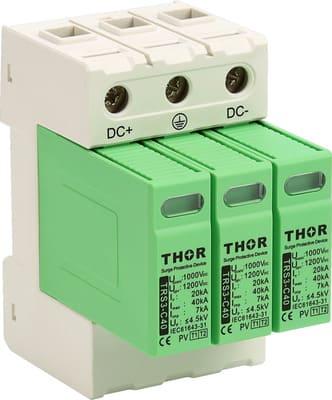

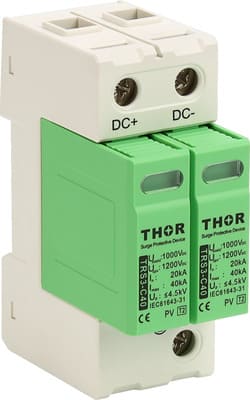

THOR TRS3-C40 series Type 1+2 DC SPDs for PV solar system can be like Ucpv DC500V,600V,800V,1000V,1200V, and the max 1500v.





  • Electrical Characteristics
  • Typ name
    TRS3-C40 1500V
  • SPD type
    T1+T2
  • Network
    1500 V
  • Max. PV operating voltage(Ucpv)
    1500 Vdc
  • Follow current
    None
  • Nominal discharge current(In)
    20kA
  • Max. discharge current(Imax)
    40kA
  • Max. impulse discharge current (10/350μs) (Iimp)
    6.25ka

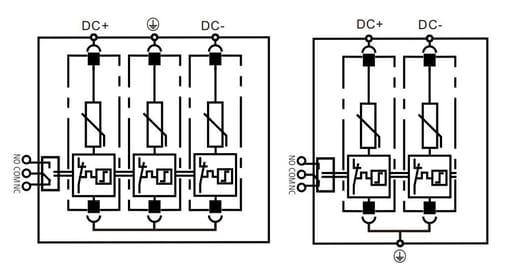

  • Connection mode(s)
    L+/L-/PE
  • Protection level +/PE (-/PE)(Up)
    5.2kV

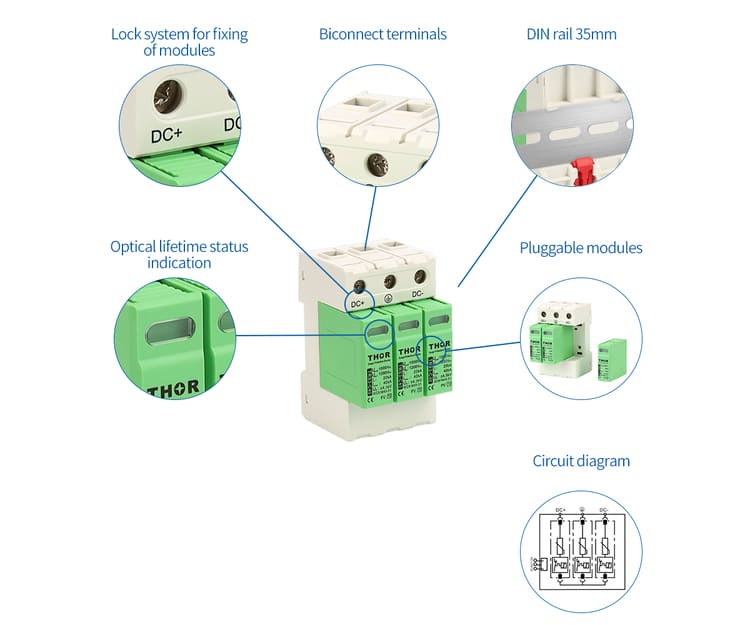

  • Mechanical Characteristics
  • Technology
    MOV
  • Connection to Network
    by screw terminals: 2.5-25 mm²
  • Format
    Plug-in modular box
  • Mounting
    Din rail 35 mm
  • Operating temperature
    -40℃-- +70℃
  • Operating temperature
    -40℃-- +70℃
  • Protection rating
    IP20
  • Failsafe mode
    Disconnection SPD of the PV line
  • Disconnection indicator
    1 mechanical indicator by pole
  • Remote signaling
    can be option if need
  • Dimensions

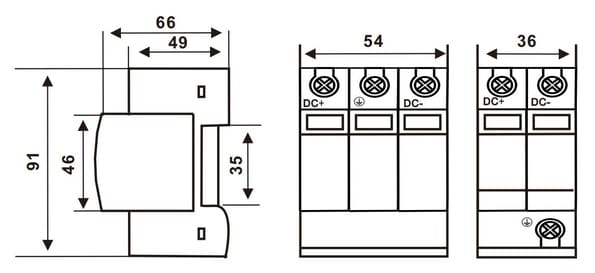

    See diaaram
